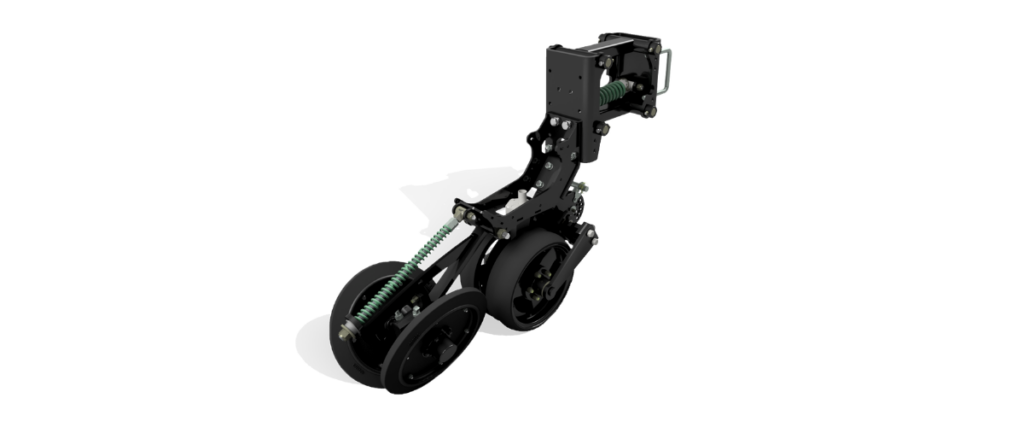

Double Disc SP200
Built for Precision, Durability, and Efficiency
The SP200 Double Disc Row Unit delivers precise seed placement and reliable performance for row crop and broadacre planting.
Key Features
Double Disc Technology
Provides precise seed placement and uniform soil coverage for optimal crop establishment.
Robust Design
Built with high-strength materials for durability and reliability.
Adjustable Depth Control
Achieve consistent seeding depth to match your specific crop requirements.
Low Maintenance Components
High-quality materials designed to reduce downtime and operating costs.
Big Press Wheels
Large diameter press wheels providing durability, reliability and consistent closing of seed trench.
Versatility
Suitable for row crop and broadacre cropping systems.
Benefits
- Low maintenance for a double disc unit.
- Low horsepower requirements.
- Accurate seed placement.
- Designed to meet the demands of Australian broadacre and zero till farming practices.
- Maximise yield potential by conserving moisture and retaining stubble cover and optimising emergence.
SP200 Options
- Precision planter systems.
- Range of Diffusers.
- Blade mud scrapers (tungsten).
- Gauge wheel scraper ring (boron).
- Steel and rubber press wheels.
- Small diameter walking press wheel assembly.
- Row cleaner (trash whipper).
- Starter and liquid fertiliser tubes.
- Rear covering chain.
- Row unit lockout
Specifications
| Unit Weight | Working Under Bar Height | Vertical Travel | Down Force Mechanism | Minimum Single Bar Spacing |
|---|---|---|---|---|
|
200kg (appox.) |
755mm |
300 |
Spring or Hydraulic |
500mm |
Need Help Choosing the Right Row Unit?
Our team can help you select the right row unit configuration for your planter and cropping system.
