HighLift Planter
High Clearance. Reliable Planting.
The Highlift Planter (TP series) is designed to provide improved clearance and stable planting performance, making it well suited to demanding field conditions and high-residue systems.
Key Features
Bridge frame construction provides a strong, stable platform allowing closer row spacings, easier maintenance and good stubble handling.
Built with a 150 x 100mm RHS main frame and 100 x 100mm SHS hanging toolbars for strength and durability while maintaining flexibility for row spacing and layouts.
Available in double or three bar variants to suit different row spacings, layouts, and crop requirements.
Available in a two point linkage frame or floating drawbar pull.
Designed to suit hydraulic row unit downforce systems for consistent ground engagement across varying soil conditions.
Equipped with durable bias ply flotation tyres for improved stability and reduced compaction.
Optional Configurations

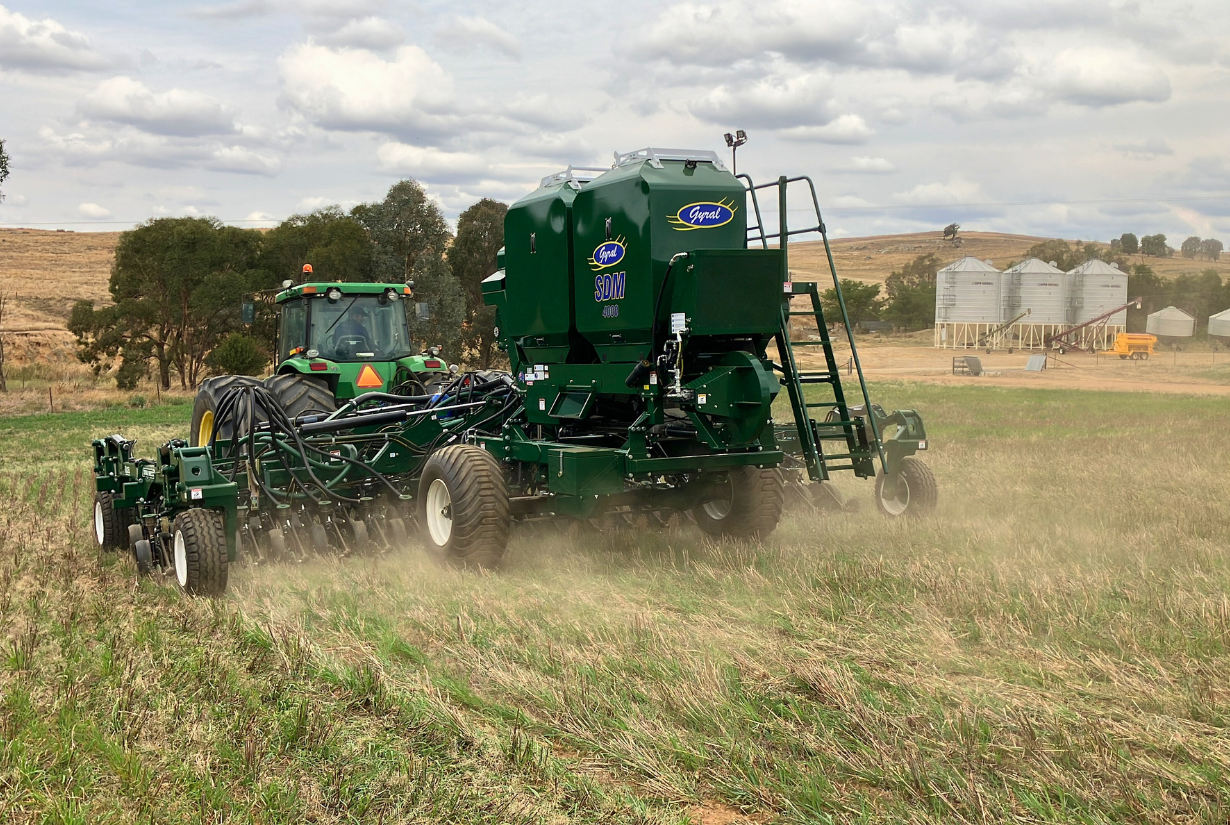

Rear mounted pull designed to tow an Air Cart for efficient seed and fertiliser delivery.

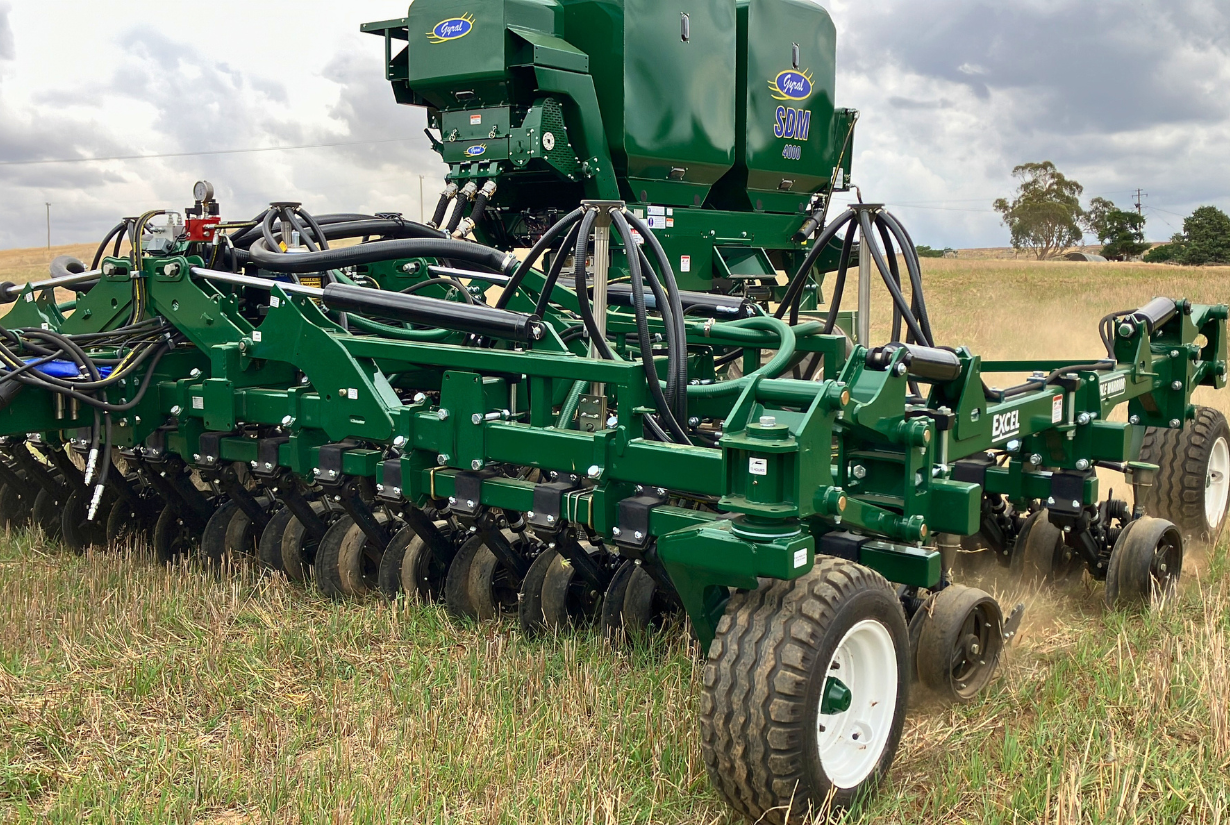

Optional mounted air seeder configuration for a compact, integrated planting setup.
Specifications
| Frame Type | Working Widths | Pull Configuration | Toolbar Operation | Folding Design | Wing Options | Downforce Compatibility | Wheel Centres | Front Wheel Option |
|---|---|---|---|---|---|---|---|---|
|
Highlift Frame |
6m, 8m, 9m, 12m |
Two Point Linkage or Floating
Drawbar |
Hydraulic Rotation |
3-section single fold |
Folding or Non-Folding |
Hydraulic row unit downforce |
1.8m, 2m, 3m |
Castoring |
Row Unit Compatibility
The Rotation Bar Planter supports the following compatible row unit:
EI853 Single Disc Row Unit
Need help configuring a planter?
Our team can help you choose the right planter frame and row unit combination for your operation.
