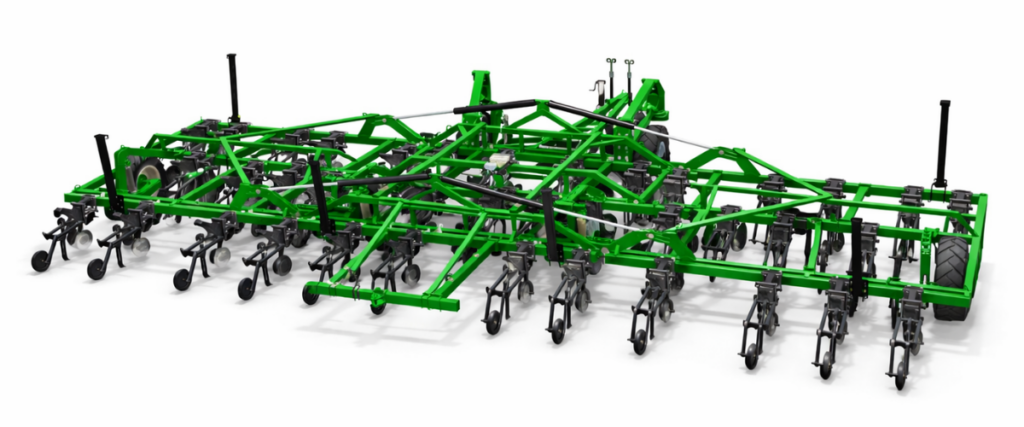

Standard Frame Planter
Strength and Stability for Precision Planting.
The Standard Frame Planter (TP Series) is built with a heavy-duty frame to deliver stable operation and consistent planting performance in demanding environments.
Key Features
High lift capability provides improved clearance during headland turns, transport, and maintenance.
Built with 150 × 100mm RHS frame sections for strength, durability, and long service life in demanding conditions.
Available in widths from 9m to 24m, suited for medium through to large-scale broadacre planting operations.
Multi-section folding design improves ground following while maintaining compact transport dimensions.
A rotary gear flow divider accurately synchronises the wheel lift and lowering for even frame movement and improved stability.
Dual bead 15.5/80-24 bias ply tyres provide strength, and durability in tough field and transport conditions.
Castoring front wheels improve manoeuvrability, tracking, and headland performance.
Available in 3m or 4m wheel centres to suit controlled traffic systems and different farming configurations.
Optional Configurations
Rear mounted pull designed to tow an Air Cart for efficient seed and fertiliser delivery across wide planting widths.
Optional toolbox, storage cage, and handwash tank improve day-to-day usability and operator comfort.
Specifications
| Frame Type | Working Widths | Pull Configuration | Main Frame | Frame Lift | Tyres | Wheel Centres |
|---|---|---|---|---|---|---|
|
Standard Frame |
9m – 24m |
Floating Drawbar |
150 × 100mm RHS |
High Lift |
15.5/80-24 |
3m or 4m |
Row Unit Compatibility
Excel planters support a range of row unit options including:
EI853 Single Disc Row Units.
SP200 Double Disc Row Units.
CR600 Parallelogram Tyne Units.
Need help configuring a planter?
Our team can help you choose the right planter frame and row unit combination for your operation.
