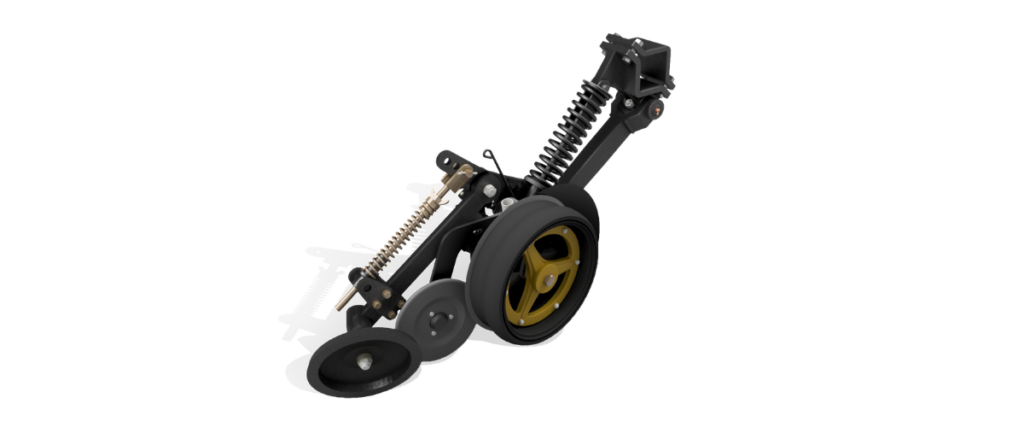

Single Disc EI853
Engineered for Precision and Durability
The Single Disc E1853 is designed to deliver accurate and reliable seed placement across a wide range of soil conditions. Built for durability and consistent performance in demanding farming environments.
Key Features
Single Disc Design
Delivers accurate seed placement with minimal soil disturbance.
Easy Adjustments
Hassle free adjustments for optimising seeding depth, firming wheel and closing wheel pressures.
Heavy-Duty Construction
Built to withstand the demands of tough field conditions.
Easy Maintenance
Engineering with durable components to reduce downtime and operating costs.
Versatile Compatibility
Suitable for various seeding systems and soil types.
Benefits
- Retain stubble.
- Constant depth seed placement.
- Reduced Soil disturbance.
- Lower draft requirements.
- Lower hp
- Less fuel
- Higher sowing speeds.
Single Disc Options
- Range of Diffusers.
- Blade mud scrapers (tungsten).
- Gauge wheel scraper ring (boron).
- Steel and flexible firming press wheels.
- Plain and spiked closing wheels.
- Compression or torsion closing wheel spring.
- 4" or 2.5" wide gauge wheel tyres.
- Rear covering chain.
- Hydraulic row cylinder downforce.
- Starter and liquid fertiliser tubes.
- Coulter Option: 18 inch 6mm (standard), 18 inch serrated (sabre tooth).
Specifications
| Unit Weight | Working Under Bar Height | Vertical Travel | Down Force Mechanism | Minimum Single Bar Spacing |
|---|---|---|---|---|
|
100kg (appox.) |
550-580mm |
250 |
Spring or Hydraulic |
333mm |
Need Help Choosing the Right Row Unit?
Our team can help you select the right row unit configuration for your planter and cropping system.
