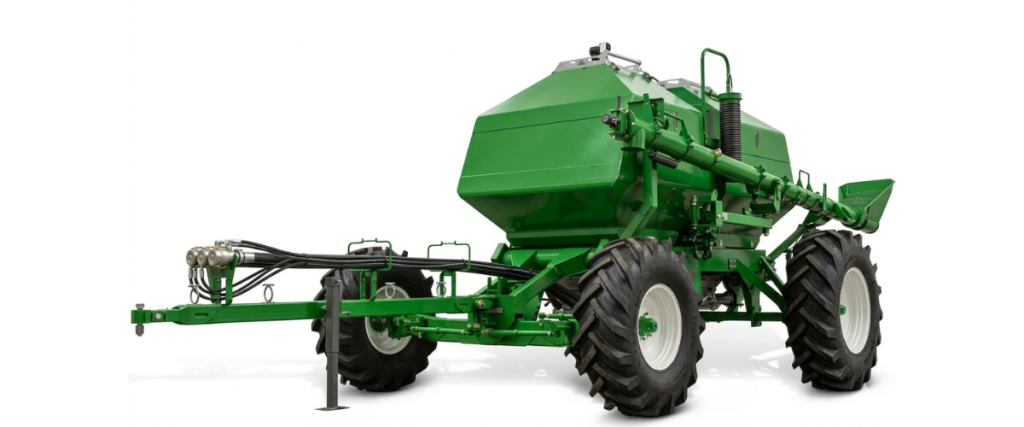

STR King Pin Steer
Powerful and Versatile Seeding Solutions

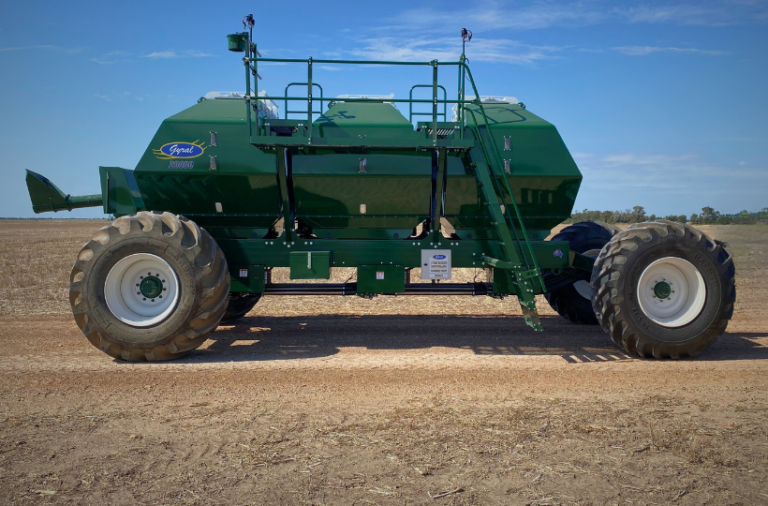

The STR King Pin Steer Gyral Air Seeder is designed for high-capacity seeding across large farming operations. Available in 2 or 3-bin configurations, it delivers efficient and reliable seed and fertiliser delivery in a single pass.
Key Features
Steerable front axle with super-steer linkage system for a tighter turning radius.
76mm (3″) diameter primary outlet hoppers with single or split air system.
Blower fan with integrated oil cooler and intake to dehumidify the air stream.
Equalised air pressure to deliver accurate product rates.
Advanced metering system ensuring even and consistent seeding for optimal results.
Controller-ready proportional hydraulics providing easy ‘on the go’ rate adjustments from cabin and variable rate control capability.
2m, 3m or 4m available.
Optional Equipment
SmartAG Systems ISOBUS or 7500 spreader controller.
Hydraulic load/unload auger with lift and slew cylinders for easier handling.
Built-in load cells on each bin integrating with controller system.
Purpose designed small seeds bin and metering with ladder and platform access.
Reliable high quality digital camera observation systems.
Heavy duty industrial LED work lighting.
Oversize sign, flashing light and tail light kits.
Narrow and high flexion options available.

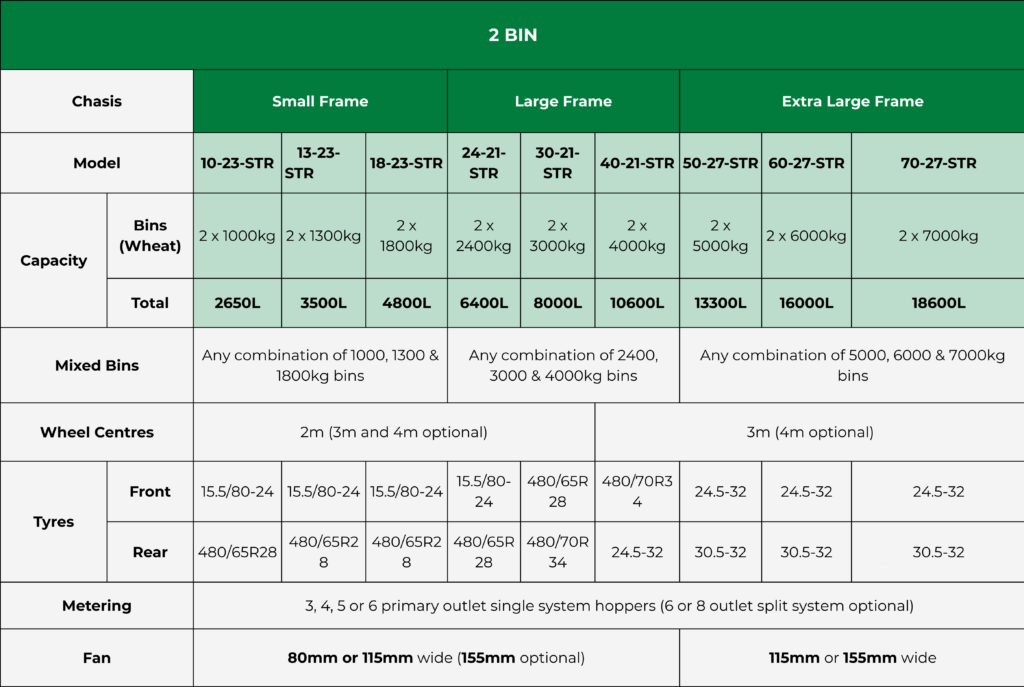

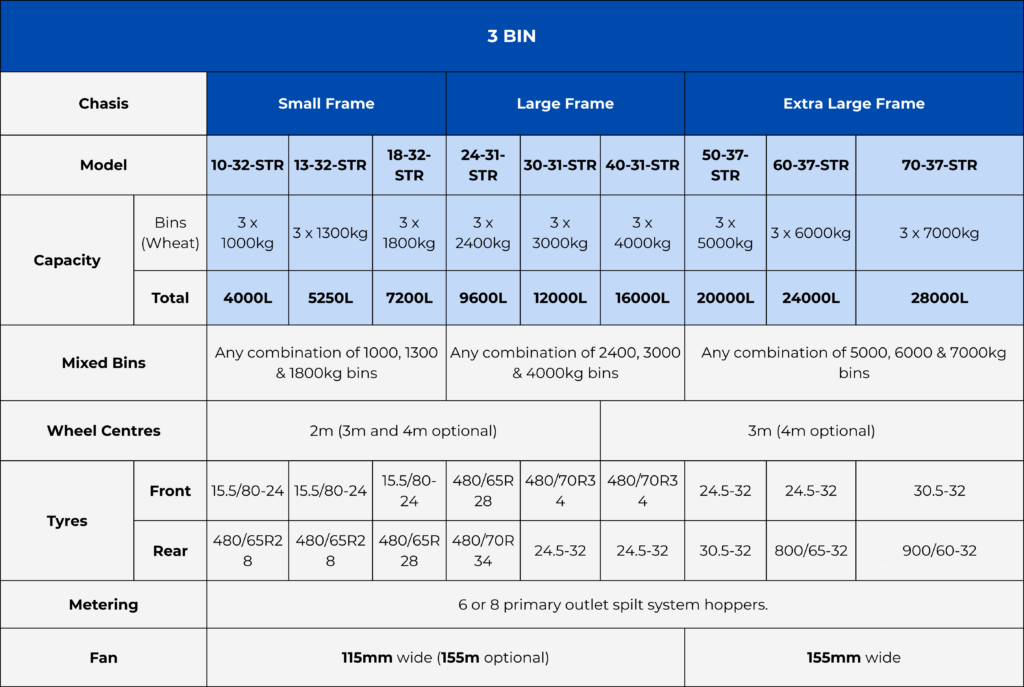

Specifications
Need Help Choosing the Right Air Seeder?
Our team can help you select the right Gyral air seeder configuration for your operation.
